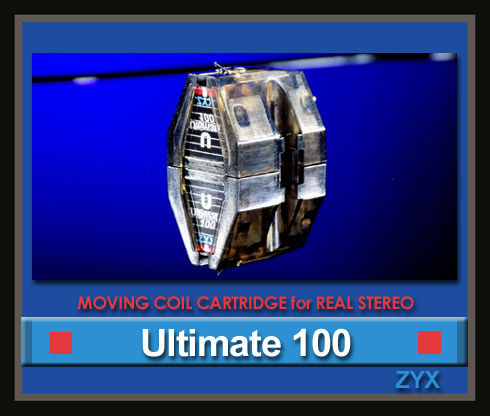

| Ultimate R100 |
Moving Coil (Dynamic)
|
| Cryogenic Treatment |
Temperature: -196 ℃ (-320оF) |
| Output Voltage |
0.24mV (3.54cm/sec, 1kHz) |
| Frequency Response |
10 Hz - 100 kHz
|
| Channel Separation |
＞ 30dB 〔 1kHz 〕 |
| Channel Balance |
＜ 0.5dB 〔 1kHz 〕 |
| Recommended Tracking Force |
2.0gm 〔 20 ゜C-25 ゜C 〕 |
| Tracking Force Range |
1.7gm - 2.5gm |
| Trackablity |
＞ 60μm |
| EQ Compliance |
horizontal |
| |
vertical |
|
15×10-6cm/dyne
12×10-6cm/dyne |
| Internal Impedance |
4.0 ΩHM |
| Load Impedance |
＞ 100 ΩHM |
|
|
6N OFC Crystal Copper φ.035mm/CRYO |
| Cantilever Material |
C-1000 composite CARBON 0.30mm |
| Stylus |
Micro-Ridge Solid Diamond 0.1mm |
| Contact Radius, Life Time |
3μm×60μm, 2000Hour/2.0gm |
| Output Terminals |
φ1.25mm K18 Solid Gold 〔 EIA 〕 |
| Terminal Board |
glass epoxy plate |
|
Dimensions W x L x H
|
16.2 x 19.7 x 17.6 mm |
| Net Weight |
5.0gm 7.7gm (TB2) 9.0gm (SB2) |
|
|
| |
|
|
|

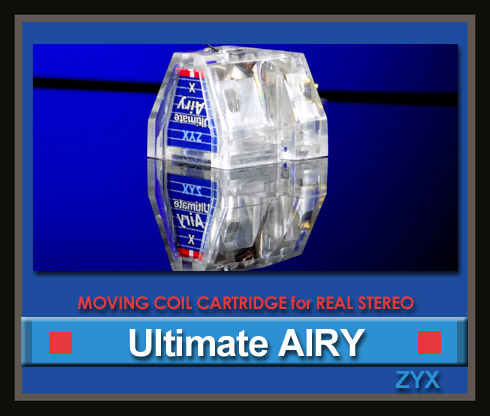

| Ultimate Airy 3 |
Moving Coil (Dynamic)
|
| Cryogenic Treatment |
Temperature: -196 ℃ (-320°F) |
| Output Voltage |
0.24mV (3.54cm/sec, 1kHz) |
Frequency Response
±1dB |
10 Hz - 100 kHz
20 Hz - 20 kHz |
| Channel Separation |
＞ 30dB 〔 1kHz 〕 |
| Channel Balance |
＜ 0.5dB 〔 1kHz 〕 |
| Recommended Tracking Force |
2.0gm 〔 20 ゜C-25 ゜C 〕 |
| Tracking Force Range |
1.7gm - 2.5gm |
| Trackablity |
＞ 60μm |
| EQ Compliance |
horizontal |
| |
vertical |
|
15×10-6cm/dyne
12×10-6cm/dyne |
| Internal Impedance |
4.0 ΩHM |
| Load Impedance |
＞ 100 ΩHM |
| Coil Wire |
X type |
| |
S type |
| |
G type |
|
6N Crystal Copper φ.035mm/CRYO
5N Silver φ 0.035mm/CRYO
24 Gold φ0.035mm/CRYO
|
| Cantilever Material |
C-1000 CARBON 0.30mm |
| Stylus |
Micro-Ridge Solid Diamond 0.1mm |
| Contact Radius, Life Time |
3μm×60μm, 2000Hour/2.0gm |
| Output Terminals |
φ1.25mm gold plated 〔 EIA 〕 |
| Dimensions W x L x H |
16.2 x 19.7 x 17.6 mm |
| Net Weight |
5.0gm, 7.7gm(TB), 9.5gm(SB) |
|
| |
|

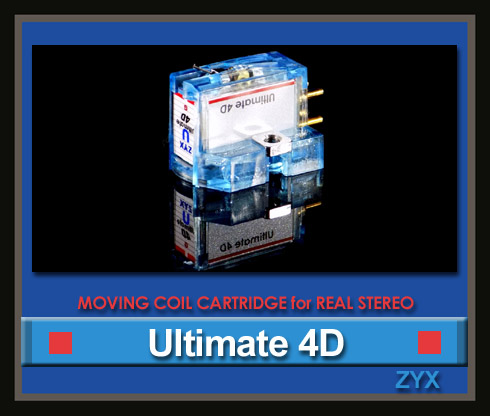

| Ultimate 4D |
Moving Coil (Dynamic)
|
| Cryogenic Treatment |
Temperature: -196 ℃ (-320оF) |
| Output Voltage |
0.24mV |
Frequency Response
|
10 Hz - 100 kHz
|
| Channel Separation |
＞ 30dB 〔 1kHz 〕 |
| Channel Balance |
＜ 0.5dB 〔 1kHz 〕 |
| Recommended Tracking Force |
2.0gm 〔 20 ゜C-25 ゜C 〕 |
| Tracking Force Range |
1.7gm - 2.5gm |
| Trackablity |
＞ 60μm |
| EQ Compliance |
horizontal |
| |
vertical |
|
15×10-6cm/dyne
12×10-6cm/dyne |
| Internal Impedance |
4.0 ΩHM |
| Load Impedance |
＞ 100 ΩHM |
| Coil Wire |
X type |
| |
S type |
| |
G type |
|
6N Crystal Copper φ.035mm/CRYO
5N Silver φ 0.035mm/CRYO
5N Gold φ 0.035mm/CRYO |
| Cantilever Material |
C-1000 composite CARBON 0.30mm |
| Stylus |
Micro-Ridge Solid Diamond 0.07mm |
| Contact Radius, Life Time |
3μm×60μm, 2000Hour/2.0gm |
| Output Terminals |
φ1.25mm gold plated 〔EIA〕 |
|
Dimensions W x L x H
|
16.8 x 19.0 x 15.6 mm |
| Net Weight |
4.1gm(6.8 gm), 8.0gm(SB2) |
|
|
| |
|
|
|

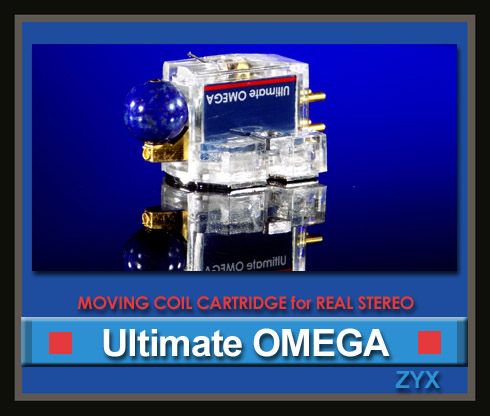

| Ultimate Omega |
Moving Coil (Dynamic)
|
| Cryogenic Treatment |
Temperature: -196 ℃ (-320оF) |
| Output Voltage |
0.24mV (3.54cm/sec, 1kHz) |
| Frequency Response |
10 Hz - 100 kHz
|
| Channel Separation |
＞ 30dB 〔 1kHz 〕 |
| Channel Balance |
＜ 0.5dB 〔 1kHz 〕 |
| Recommended Tracking Force |
2.0gm 〔 20 ゜C-25 ゜C 〕 |
| Tracking Force Range |
1.7gm - 2.5gm |
| Trackablity |
＞ 60μm |
| EQ Compliance |
horizontal |
| |
vertical |
|
15×10-6cm/dyne
12×10-6cm/dyne |
| Internal Impedance |
4.0 ΩHM |
| Load Impedance |
＞ 100 ΩHM |
| Coil Wire |
X type |
| |
S type |
| |
G type |
|
6N Crystal Copper φ.035mm/CRYO
5N Silver φ 0.035mm/CRYO
5N Gold φ 0.035mm/CRYO |
| Cantilever Material |
C-1000 composite CARBON 0.30mm |
| Stylus |
Micro-Ridge Solid Diamond 0.1mm |
| Contact Radius, Life Time |
3μm×60μm, 2000Hour/2.0gm |
| Output Terminals |
φ1.25mm K18 Solid Gold 〔 EIA 〕 |
| Terminal Board |
Composite CARBON Plate |
|
Dimensions W x L x H
|
16.8 x 25.0 x 16.5 mm |
| Net Weight |
7.9gm (TB2) 9.1gm (SB2) |
|
| |
|

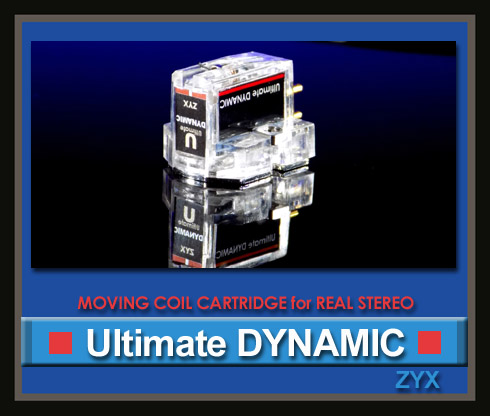

| Ultimate Dynamic |
Moving Coil (Dynamic)
|
| Cryogenic Treatment |
Temperature: -196 ℃ (-320оF) |
| Output Voltage |
0.15mV (3.54cm/sec, 1kHz) |
| Frequency Response |
10 Hz - 100 kHz
|
| Channel Separation |
＞ 30dB 〔 1kHz 〕 |
| Channel Balance |
＜ 0.5dB 〔 1kHz 〕 |
| Recommended Tracking Force |
2.0gm 〔 20 ゜C-25 ゜C 〕 |
| Tracking Force Range |
1.7gm - 2.5gm |
| Trackablity |
＞ 60μm |
| EQ Compliance |
horizontal |
| |
vertical |
|
15×10-6cm/dyne
12×10-6cm/dyne |
| Internal Impedance |
12.0 ΩHM |
| Load Impedance |
＞ 100 ΩHM |
|
|
6N Crystal Copper φ.035mm/CRYO |
| Cantilever Material |
C-1000 composite CARBON 0.30mm |
| Stylus |
Micro-Ridge Solid Diamond 0.1mm |
| Contact Radius, Life Time |
3μm×60μm, 2000Hour/2.0gm |
| Output Terminals |
φ1.25mm K18 Solid Gold 〔 EIA 〕 |
| Terminal Board |
Composite CARBON Plate |
|
Dimensions W x L x H
|
16.8 x 19.0 x 16.5 mm |
| Net Weight |
6.8gm (TB2) 8.0gm (SB2) |
|
|
| |
|
|
|

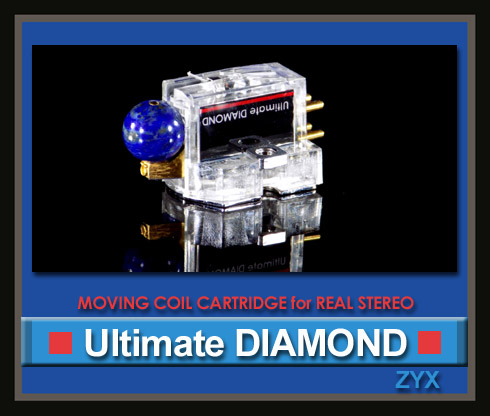

| Ultimate Diamond |
Moving Coil (Dynamic)
|
| Cryogenic Treatment |
Temperature: -196 ℃ (-320оF) |
| Output Voltage |
0.24mV (3.54cm/sec, 1kHz) |
| Frequency Response |
10 Hz - 100 kHz
|
| Channel Separation |
＞ 30dB 〔 1kHz 〕 |
| Channel Balance |
＜ 0.5dB 〔 1kHz 〕 |
| Recommended Tracking Force |
2.0gm 〔 20 ゜C-25 ゜C 〕 |
| Tracking Force Range |
1.7gm - 2.5gm |
| Trackablity |
＞ 60μm |
| EQ Compliance |
horizontal |
| |
vertical |
|
15×10-6cm/dyne
12×10-6cm/dyne |
| Internal Impedance |
4.0 ΩHM |
| Load Impedance |
＞ 100 ΩHM |
| Coil Wire |
X type |
| |
S type |
| |
G type |
|
6N Crystal Copper φ.035mm/CRYO
5N Silver φ 0.035mm/CRYO
5N Gold φ 0.035mm/CRYO |
| Cantilever Material |
Natural Diamond0.22mm |
| Stylus |
Micro-Ridge Solid Diamond 0.1mm |
| Contact Radius, Life Time |
3μm×60μm, 2000Hour/2.0gm |
| Output Terminals |
φ1.25mm K18 Solid Gold 〔 EIA 〕 |
| Terminal Board |
Composite CARBON Plate |
|
Dimensions W x L x H
|
16.8 x 25.0 x 16.5 mm |
| Net Weight |
7.9gm (TB2) 9.1gm (SB2) |
|
| |
|

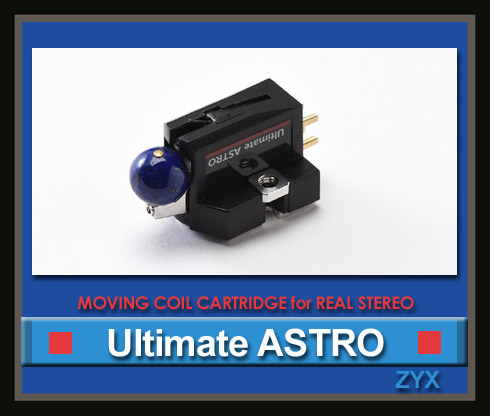

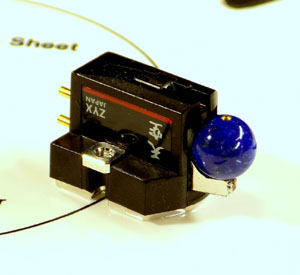

| Ultimate ASTRO |
Moving Coil (Dynamic)
|
| Cryogenic Treatment |
Temperature: -196 ℃ (-320оF) |
| Output Voltage |
0.24mV (3.54cm/sec, 1kHz) |
| Frequency Response |
10 Hz - 100 kHz
|
| Channel Separation |
＞ 30dB 〔 1kHz 〕 |
| Channel Balance |
＜ 0.5dB 〔 1kHz 〕 |
| Recommended Tracking Force |
2.0gm 〔 20 ゜C-25 ゜C 〕 |
| Tracking Force Range |
1.7gm - 2.5gm |
| Trackablity |
＞ 60μm |
| EQ Compliance |
horizontal |
| |
vertical |
|
15×10-6cm/dyne
12×10-6cm/dyne |
| Internal Impedance |
4.0 ΩHM |
| Load Impedance |
＞ 100 ΩHM |
| Coil Wire |
X type |
| |
S type |
| |
G type |
|
6N Crystal Copper φ.035mm
5N Silver φ 0.035mm
24K Gold φ 0.035mm |
| Cantilever Material |
C 1000 carbon f0.30mm |
| Stylus |
Micro-Ridge Solid Diamond 0.1mm |
| Contact Radius, Life Time |
3μm×60μm, 2000Hour/2.0gm |
| Output Terminals |
φ1.25mm K18 Solid Gold 〔 EIA 〕 |
| Terminal Board |
Composite CARBON Plate |
|
Dimensions W x L x H
|
16.8 x 25.0 x 16.5 mm |
| Net Weight |
7.9gm (TB2) 9.1gm (SB2) |
|
|
|
|
|
