The CS-1000P amplifier has power, polyvalence and refinement in abundance.

This is a power amplifier which has just about all of the features you could wish for and enough power to drive most loudspeakers.

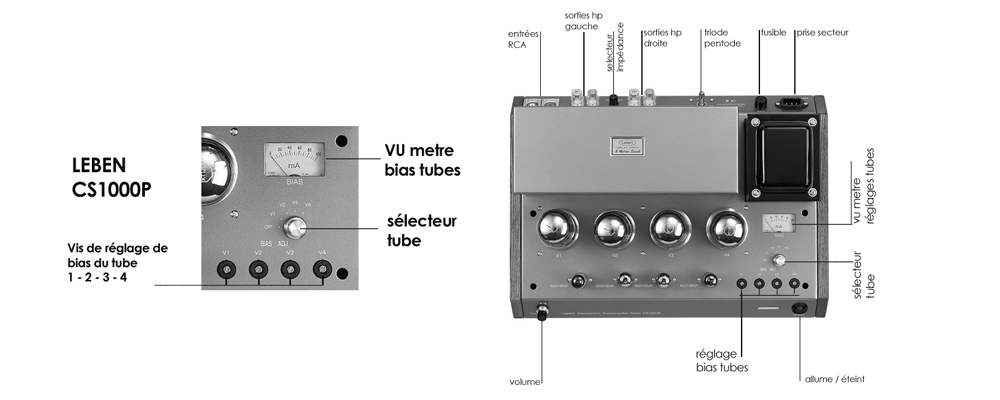

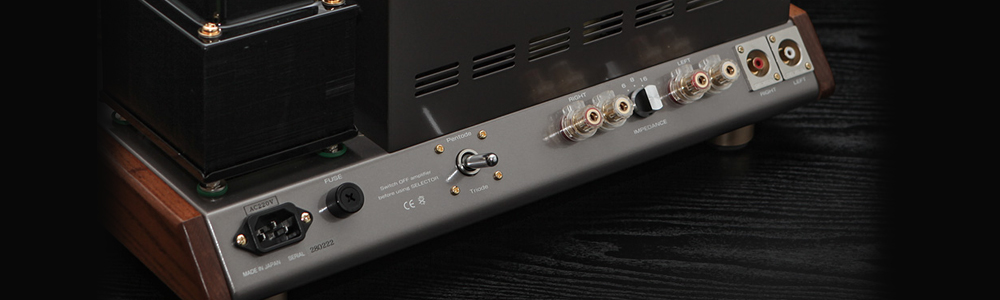

The choice of power tubes that can be used is extensive, in addition, there is a triode / pentode selector at the rear. Each power tube operation is optimised by the quick and easy to use bias system and VU meter. A volume control plus selectable output impedance are also standard features.

The CS1000P can be your musical partner, and of course a perfect partner for the Leben RS-28CX.





Specifications Leben CS-1000P I

banc d'essai / récompense / recommandé I

i n p u t s 1 x pair RCA
t u b e s 6922 x 2  / 6CG7 x 2
t u b e s  d e  p u i s s a n c e KT120 / KT88 / KT66 / EL34 / 6L6 (x 4)
o u t p u t   p o w e r 65 wpc pentode / 35 wpc triode
f r e q u e n c y   r e s p o n s e 10Hz-120 KHz
d i s t o r t i o n 0.4% rentode / 1% triode @ 30 watts
o u t p u t   i m p e d a n c e 4 / 6 / 8 / 16 ohms (selectable)
w e i g h t 23,5 Kgs
d i m e n s i o n s 455 X 335 X 200  ( w x d x h ) mm
